High Quality Laser Cutting Machine
High quality laser cutting machine-LEAD LH6025. LEAD LASER team put the quality prior to other aspects when designing the laser machine. In order to guarantee high quality, we adopts global famous brands of laser industry.
Product Introduction

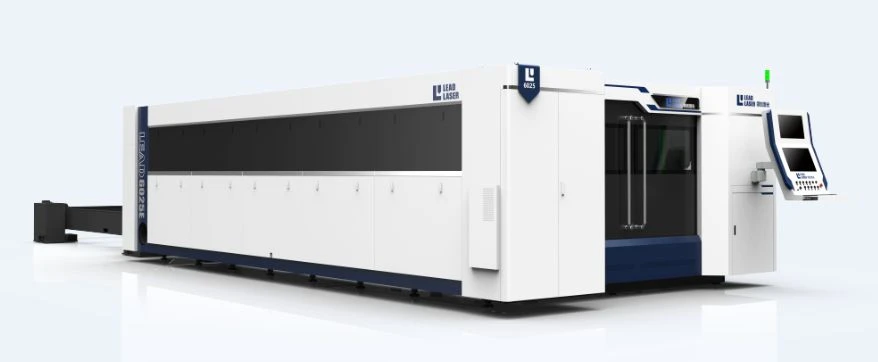

High Quality Laser Cutting Machine- LH6025
High quality laser cutting machine-LEAD LH6025. LEAD LASER team put the quality prior to other aspects when designing the laser machine. In order to guarantee high quality, we adopts global famous brands of laser industry. The CNC system and servo motor is made by Germany Keba. Gearbox and rear rack adopts Germany Alpha. Both of them can make sure the accuracy and lifetime of machine over 10kw laser power.
High quality cutting head can realize auto-focus piercing function. The latest ProCutter 2.0 version with cooler system inside low the temperature during cutting thick metal sheet. It greatly protect lens lifetime.

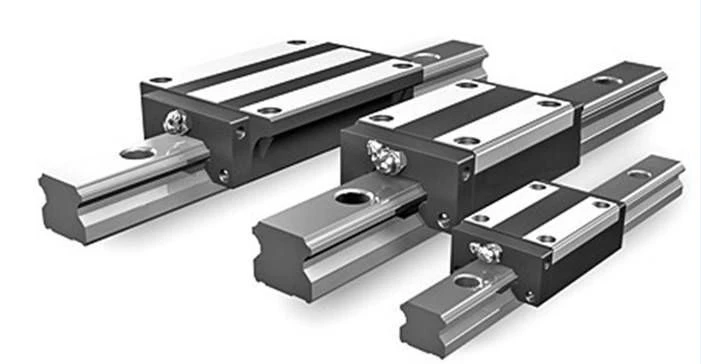

High Precision Linear guide
Technical Parameter
Item | LH-6025 | Unit |
Cutting Area | 6000*2500 | mm |
X axis stroke | 6050 | mm |
Y axis stroke | 2550 | mm |
Z axis stroke | 120 | mm |
X/Y-axis positioning accuracy | ±0.03 | mm/m |
Repositioning accuracy | 0.02 | mm/m |
Maximum positioning speed | 150 | m/min |
Maximum acceleration | 2.5 | g |
Laser power | 6000-20000 | w |
