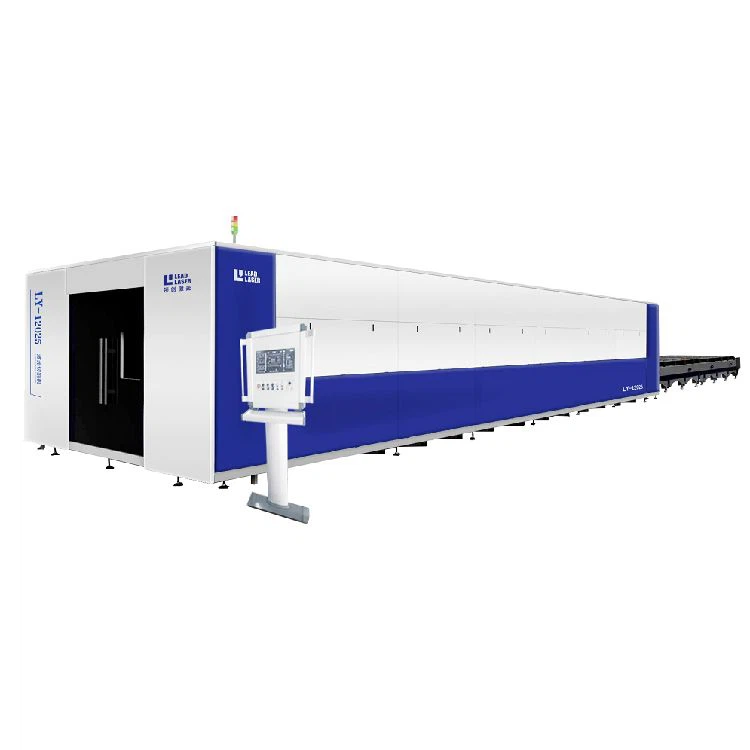

Large Area Cutting Machine
The large area cutting machine-LEAD LY series has been designed for large metal sheet such as 10 meters and 12meters. Which makes up for the blank market of large metal sheet in traditional laser industry.
Product Introduction
Large Area Cutting Machine
The large area cutting machine-LEAD LY series has been designed for large metal sheet such as 10 meters and 12meters. Which makes up for the blank market of large metal sheet in traditional laser industry. Double tables extremely improves the cutting efficiency without stopping machine running during loading and unloading material so as to meet the requirements of big size and thick metal sheet cutting. Separated work station provide flexible operating position.
 | The frame-structure machine base after high temperature annealing treatment to stress relief, avoids deform easily during high power running for long time. Parallel-exchange worktable saves time during loading and unloading material especially for thick metal sheets to dramatically improve productive efficiency. Longer Z axis stroke with widely moving height is allowed to cut thick sheets freely. | |
Technical Parameter
Item | LY-10025 | LY-12025 | Unit |
Cutting Area | 10000*2500 | 12000*2500 | mm |
X axis stroke | 10050 | 12050 | mm |
Y axis stroke | 2525 | 2525 | mm |
Z axis stroke | 380 | 380 | mm |
X- and Y-axis positioning accuracy | ±0.03 | ±0.03 | mm/m |
X- and Y-axis repositioning accuracy | 0.02 | 0.02 | mm/m |
Maximum positioning speed | 120 | 120 | m/min |
Maximum acceleration | 1.2 | 1.2 | g |
Laser power | 10000-20000 | W | |
