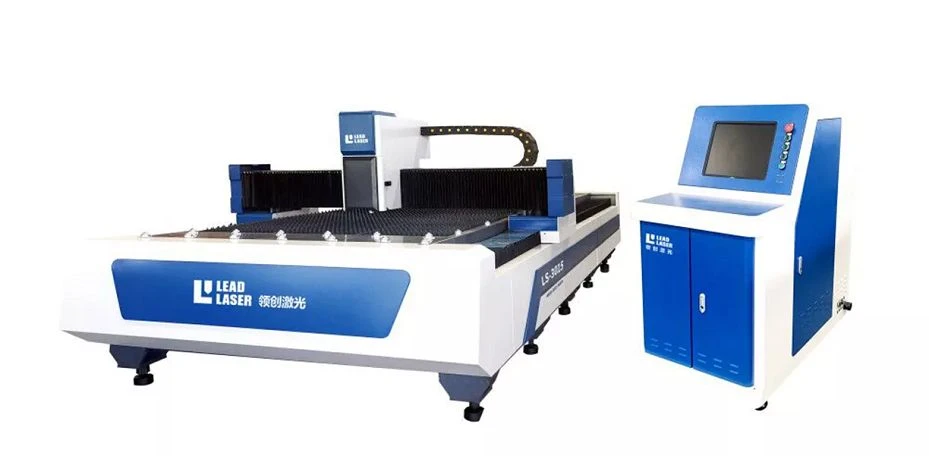

Mini Fiber Laser Cutting Machine
Mini fiber laser cutting machine-LS 3015 is the smaller type in dealing with metal sheet size in 3meters length and 1.5meters width. After special design, it can be placed into small space to avoid the lack of space at workshop.
Product Introduction
Mini Fiber Laser Cutting Machine
Mini fiber laser cutting machine-LS 3015 is the smaller type in dealing with metal sheet size in 3meters length and 1.5meters width. After special design, it can be placed into small space to avoid the lack of space at workshop. The cross beam with very light weight can make sure high cutting precision at very fast speed running. Imported linear guides and servo motor give the best guarantee of processing accuracy for several years. Suitable for thin material within 6mm metal sheet cutting, fast speed, high efficiency.
Main Parameter
Item | LS-3015 | LS-4020 | Unit |
Cutting Area | 3000*1500 | 4000*2000 | mm |
X axis stroke | 3050 | 4050 | mm |
Y axis stroke | 1550 | 2050 | mm |
Z axis stroke | 80 | 80 | mm |
X- and Y-axis positioning accuracy | ±0.03 | ±0.03 | mm/m |
Repositioning accuracy | 0.02 | 0.02 | mm/m |
Maximum positioning speed | 64 | 64 | m/min |
Maximum acceleration | 1 | 1 | g |
Laser power | 2000-4000 | w | |
