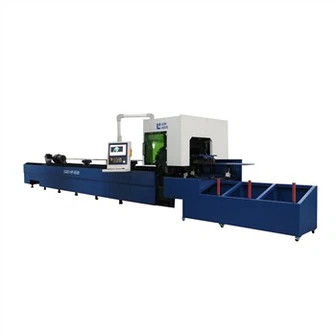

Tube Laser Cutting Machine 2000w
LEAD TVF 6520 2000W, it is very popular tube cutting machine by customer. Most types of tubes can be cut. It can deal with stainless up to 5 mm and 8 mm carbon steel.
Product Introduction
Tube Cutting Machine 2000w
LEAD TVF 6520 2000W, it is very popular tube cutting machine by customer. Most types of tubes can be cut. It can deal with stainless up to 5 mm and 8 mm carbon steel. Not only standard size in pipe and square can cut, but also dealing with special types, L shape, H shape, Oval and so on. The laser source adopts IPG laser source which is very famous brand in Laser industry. There are global after-sales service who can support your machine running within 24 hours.
Software
TubesT is a 3D tube nesting software designed for TubePro laser cutting system. From parts drawing and modification, full type compensation, strategic nesting to report generation, using TubesT will meet and exceed your production needs. Advanced nesting and programming software to achieve the functions of common edge nesting, three-knife cutting of bevel and so on for tube material and profile material to ensure the maximum production and precision.
Parameter
Item | LEAD tVF-6530&6520 | Unit |
X axis stoke | 6800 | mm |
X axis Max. moving speed | 85 | m/min |
Y axis stoke | 400 | mm |
Y axis Max. speed | 65 | m/min |
Z axis stoke | 235 | mm |
Z axis Max. Moving speed | 60 | m/min |
X、Y axis positioning accuracy | ±0.03 | mm/m |
Rotated stroke | 360 | Degree |
Rotated axis Max. speed | 60 | r/min |
Repeat positioning accuracy X,Y axis | 0.02 | mm/m |
Maximum Acceleration | 1 | g |
Laser power available | 1000 | w |
Round thickness range | 20 ~ 310 &210 | mm |
Square thickness range | 20~ 210 x210 & 150 x 150 | mm |
