Square Pipe Cutting Machine
LEAD LASER LEAD TVF series tube machine can cut square pipe. Available material includes stainless, carbon steel, aluminum ect. It can also deal with all kinds of thickness from 1mm to 10mm, then choose suitable fiber laser source accordingly.
Product Introduction

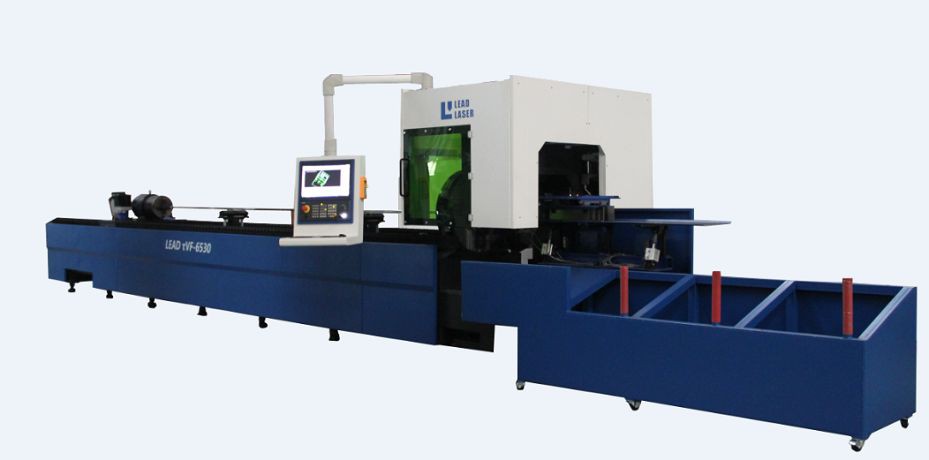

Square Pipe Cutting Machine
LEAD LASER LEAD TVF series tube machine can cut square pipe. Available material includes stainless, carbon steel, aluminum ect. It can also deal with all kinds of thickness from 1mm to 10mm, then choose suitable fiber laser source accordingly. If max size of each edge of tube up to 210mm, our LEAD TVF 6530 with max. diameter 300mm chuck can be applied. Once within 155mm, I will recommend LEAD TVF 6520 with max. Diameter 220mm chuck to your production line.

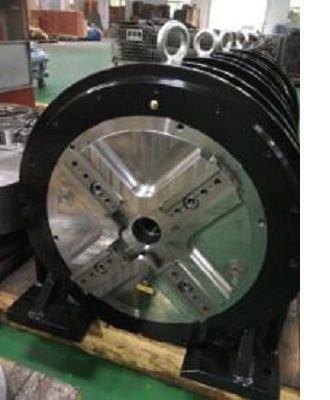

 | Clamping chuck The lead TVF pipe machine has two clamping chuck. The front one mainly fix the pipe in order to stable enough during cutting. The function of rear one is to clamp the pipe then adjust the direction in right way. Meanwhile, it also give driving force to the pipe. Both two clamping chuck matched well make sure pipe cutting accuracy. | |
Parameter
Item | LEAD tVF-6520 | LEAD tVF-6530 | Unit |
X axis stoke | 6800 | 6800 | mm |
X axis Max. speed | 90 | 90 | m/min |
Y axis stoke | 420 | 420 | mm |
Y axis Max. speed | 64 | 64 | m/min |
Z axis stoke | 240 | 240 | mm |
Z axis Max. speed | 60 | 60 | m/min |
X、Y axis positioning accuracy | ±0.03 | ±0.03 | mm/m |
A1 A2 stroke | 360 | 360 | Degree |
A1 A2 axis Max. speed | 60 | 60 | r/min |
Repeat positioning accuracy | 0.02 | 0.02 | mm/m |
Max. Acceleration | 1 | 1 | g |
Laser power | 1000-4000 | 1000-4000 | w |
Max.round pipe | 210 | 310 | mm |
Max..square tube | 150 x150 | 210 x210 | mm |
