12kw Fiber Laser Cutting Machine
12kw fiber laser cutting machine is the most popular laser power when choosing high power. The cutting speed has dramatically increased comparing with 8kw.
Product Introduction
12kw Fiber Laser Cutting Machine
12kw fiber laser cutting machine is the most popular laser power when choosing high power. The cutting speed has dramatically increased comparing with 8kw. Especially making piercing on 25mm carbon steel with only 0.1 secs. Also parts without any burs. The LH series with 12kw can cut 25mm carbon steel without stopping in 24hours. LEAD LASER has strong cooperation with NO.1 laser supplier IPG company. Whose after-sales service covers all over the world, thus is the basic insurance to avoid machine stopping for long term. Of course, if your budget is limit, Raycus laser as Chinese NO. 1 laser source is also very good choice.

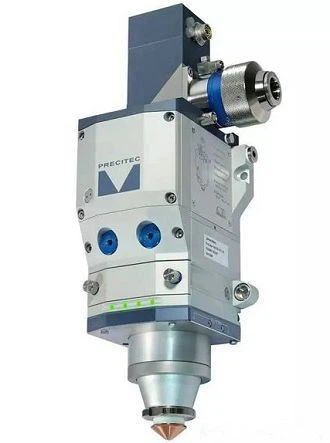

 | Auto focus laser cutting head. When matching with 12kw laser source, LEAD LASER adopts Precitec "Procutter 2.0" latest version head. It was designed with cooling system inside head, efficiently low the temperature of lens to extend the working life. Multi sensors can monitor the actual condition, then give alarm when any potential problem happen. | |
Main Parameter
Item | LX-1530 | LZ-6025 | LH-6025 | LEADSF | Unit |
Cutting area | 1500*3000 | 6000*2500 | 6000*2500 | Customized size | mm |
X axis stroke | 1550 | 6050 | 6050 | 8050 | mm |
Y axis stroke | 3050 | 2550 | 2550 | 2550 | mm |
Z axis stroke | 100 | 310 | 100 | 310 | mm |
X- and Y-axis positioning accuracy | ±0.03 | ±0.03 | ±0.03 | ±0.03 | mm/m |
X、Y axis repositioning accuracy | 0.02 | 0.02 | 0.02 | 0.02 | mm/m |
Maximum positioning speed | 120 | 110 | 150 | 80 | m/min |
Maximum acceleration | 2 | 1.5 | 2.5 | 1.5 | g |
Laser power | 6000-12000 | W | |||
