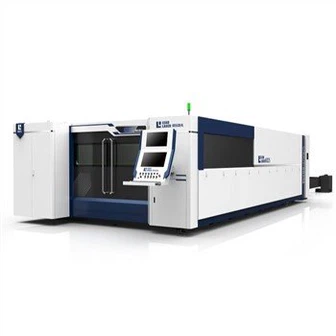

4kw Laser Cutter
4kw lasercutter-LZ3015/4020. With fiber laser cutting machine developed very fast, laser power increase dramatically to 30kw. But as the basic model, the laser cutter with 4kw still be current market trend.
Product Introduction
4kw Laser Cutter
4kw lasercutter-LZ3015/4020. With fiber laser cutting machine developed very fast, laser power increase dramatically to 30kw. But as the basic model, the laser cutter with 4kw still be current market trend. Suitable for dealing with medium thickness metal sheet less than 16mm. Until now, two brands Raycus and IPG laser generator can be as option. Both them are very famous laser generator supplier in the world. LZ3015 with 4KW laser cutter can be used in the industry of Engineering Machinery, Agriculture Machinery, Textile Machinery, Military Weapon, Petroleum Machinery, Port Machinery, Building Templates, Printing and Packaging Machinery, Elevator Manufacturing.
Precitec LightCutter head.
Precitec promotes economic head especially for laser source lower than 4kw. It can auto-focus quickly without compromising the cutting result. At the same time, the cost decrease a lot comparing to Procutter head. The head matching with advanced Precitec height adjusting capacity, can exactly test the distance between nozzle and sheet metal so as to avoid any collision. The light head reduce the whole bridge weight.Matching with driven motor, the head can go up and down at very fast speed.
Application
Main Parameter
Item | LZ-3015 | LZ -4020 | Unit |
Cutting area | 3000*1500 | 4000*2000 | mm |
X axis stroke | 3050 | 4050 | mm |
Y axis stroke | 1550 | 2050 | mm |
Z axis stroke | 310 | 310 | mm |
X- and Y-axis positioning accuracy | ±0.03 | ±0.03 | mm/m |
X、Y axis repositioning accuracy | 0.02 | 0.02 | mm/m |
Maximum positioning speed | 150 | 150 | m/min |
Maximum acceleration | 1.5 | 1.5 | g |
Laser power | 2000-6000 | W | |
