3kw Fiber Sheet Laser
3kw fiber sheet laser -LF 3015 laser cutting machine uses steel bridge with high level stiffness. After many test, 3kw laser source has very high efficient in dealing with 10mm medium metal sheet no matter carbon steel, stainless or aluminum.
Product Introduction

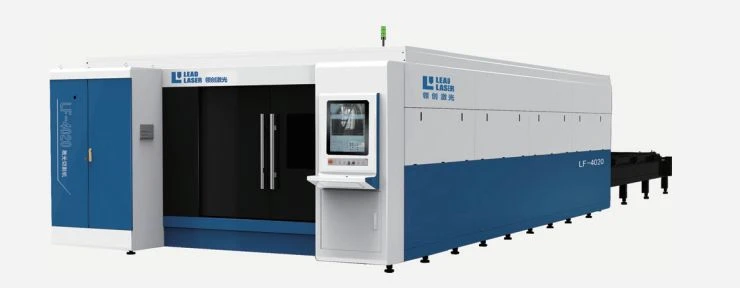

3kw Fiber Sheet Laser LF 3015
3kw fiber sheet laser -LF 3015 laser cutting machine uses steel bridge with high level stiffness. After many test, 3kw laser source has very high efficient in dealing with 10mm medium metal sheet no matter carbon steel, stainless or aluminum. The standard laser source can be IPG or Raycus. Both them have own advantages in terms of quality and cost.
Main Feature

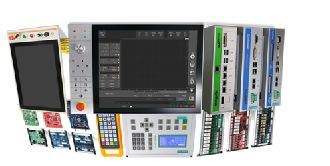

 | Intelligent CNC control system CypNest is a nesting software designed for CypCut/ HypCut sheet laser cutting system. It integrates advanced functions of drawing modification, quick nesting, toolpath generation, analysis report and more to meet your production needs. | |

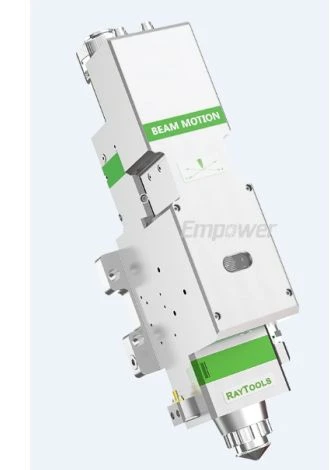

Auto focusing cutting head The standard head is Raytools head. It has advantages of auto-focusing very fast, and we don't need to adjust focus by manual hand.Of course, Precitec "Lightcutter" is also a good options. |  | |
Main Parameter
Item | LF-3015 | LF-4020 | Unit |
Cutting Area | 3000*1500 | 4000*2000 | mm |
X axis stroke | 3050 | 4050 | mm |
Y axis stroke | 1550 | 2050 | mm |
Z axis stroke | 310 | 310 | mm |
X- and Y-axis positioning accuracy | ±0.03 | ±0.03 | mm/m |
X- and Y-axis repositioning accuracy | 0.02 | 0.02 | mm/m |
Maximum positioning speed | 64 | 64 | m/min |
Maximum acceleration | 1 | 1 | g |
Laser power | 1500-6000 | W | |
