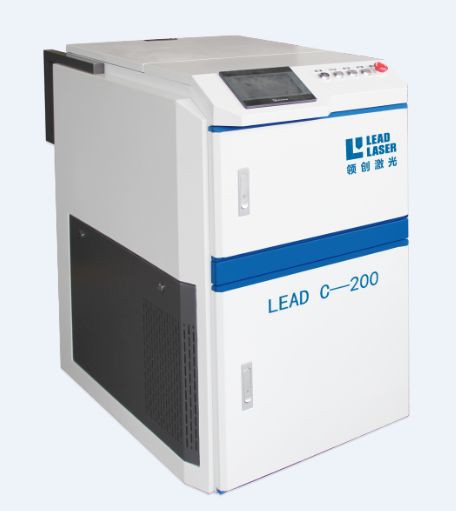

Hand-held Laser Cleaner

Hand-held Laser Cleaner

LEAD C Series--- Laser Cleaning Machine is an efficient and environmentally friendly cleaning technology with some more advantages over chemical cleaning and mechanical cleaning.

Product Introduction

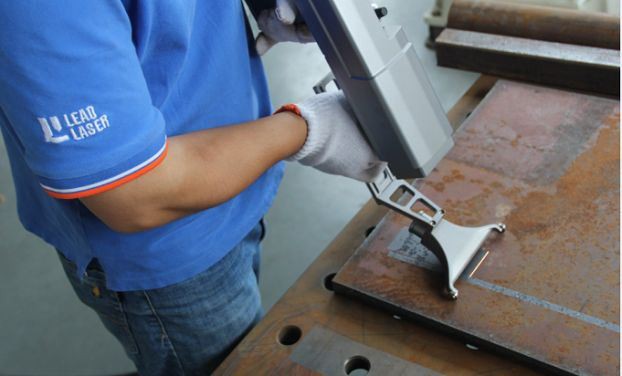

Hand-Held Laser Cleaning Gun Head


LEAD C Series--- Laser Cleaning Machine is an efficient and environmentally friendly cleaning technology with some more advantages over chemical cleaning and mechanical cleaning. Laser cleaning technique is refers to the use of high power density laser beam irradiation workpiece surface, so that the surface of dirt, rust or coating occurs instantaneous evaporation or stripping, so as to achieve the process of cleaning.


Main Feature

Non-contact type cleaning does not damage the matrix of the parts;

Precise cleaning can realize precise position, precise size and selective cleaning .

Need not any chemical cleaning solution,no consumable, security and environmental protection ;

Operation simple , can be used after switching on the power supply, and it can be carried out automatically by hand or with the manipulator ;

High cleaning efficiency, save time;

The laser cleaning system very stable and requires virtually no maintenance.


Operation simple and flexible , high stability against vibration




Comparison between before and after cleaning



Optical Parameter

Laser power

200/300/500W

Power regulating range

10-100Gradual change is adjustable

Repetition frequency(KHz)

20-50 Gradual change is adjustable

Cleaning Efficiency (m2/h)

5

Focal Distance(mm)

210/160 Interchangeable

Type of cooling

Water-cooling

Mechanical Parameter

Size Dimension

1100mm×700mm×1150mm

Weight

270Kg

Optical fiber length

5M (10 M can be customized )

Cleaning head weight

2.5Kg

Scan width

10-80mm

Move mode

Handheld
