Hand-held Welding Machine
Laser Source: high stability, low maintenance, more energy saving
The well-known laser source (Raycus, MAX, Reci and other well-known brands) with advantages of high stability, low maintenance and more power saving, which can effectively reduce the use costs and optimize the use experience.
Product Introduction

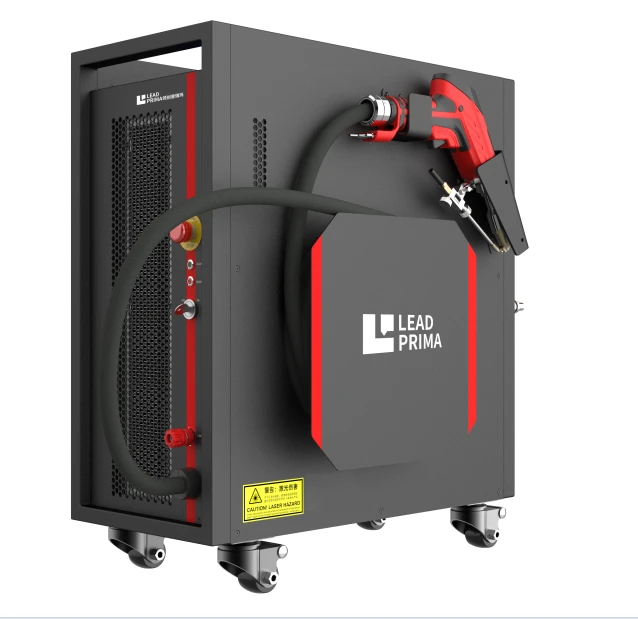

LEAD MW Hand-held laser welding machine series
Main Features
Laser Source: high stability, low maintenance, more energy saving
The well-known laser source (Raycus, MAX, Reci and other well-known brands) with advantages of high stability, low maintenance and more power saving, which can effectively reduce the use costs and optimize the use experience.
 |
Chiller: internal and external circulation, high efficient and stable The water cooling system is composed of the inner circulating system and the outer circulating system. The inner circulating system is provided by the laser itself. The external circulation system uses a special laser water cooling unit to ensure the long-term stable running for the laser |
|
|
Laser welding head: ergonomic design, compact structure, easy to use The head adopts QBH optical fiber hand-held laser welding head, and the unique laser control box has three modes of light output: QCW (quasi-continuous), PWM (pulse) and CW (continuous). The welding head is equipped with blow control and safety lock. Equipped with wire feeding auxiliary function, make the welded products more exquisite and firm |
 |
|
Main parameters of the equipment
|
Name |
Hand-held continuous laser welding machine |
|
Model |
LEAD MW-500/1000/2000/3000 |
|
Power supply |
220V±5%, 50Hz Rated power: ≤5KW |
|
Environmental requirement |
Temperature 5-40℃; Humidity 10-90% |
|
Working time |
24H(Continuous Running) |
|
Recommended welding thickness |
0.5-3mm |
|
Welding seam |
≤0.5mm |
|
Failure rate |
≤2% |
|
Qualified Rate |
≥99.5%(Excluded Poor Incoming Material) |
|
Utilization rate |
≥95% |
|
Staff |
1Person |
Industry Application

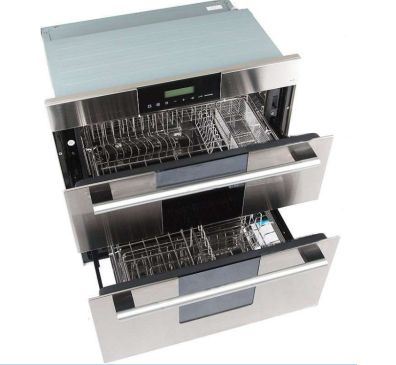

Kitchenware

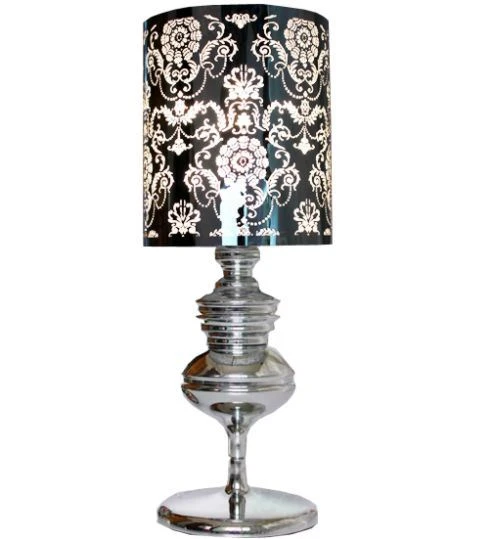

Lighting Decoration

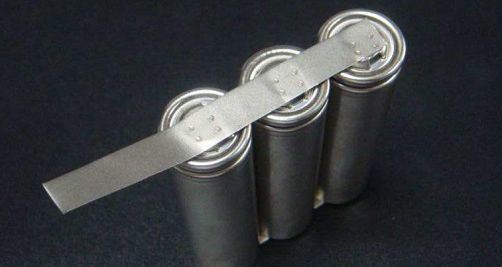

Battery

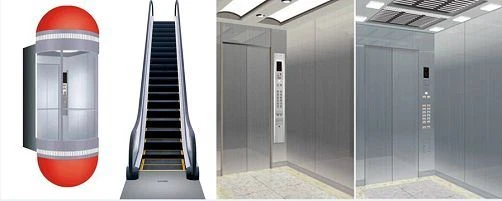

Elevator Manufacturing
Electrical Cabinet

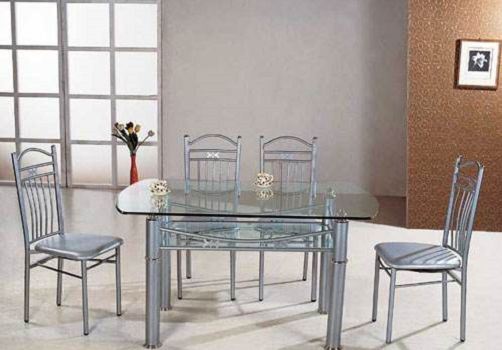

Metal Furniture

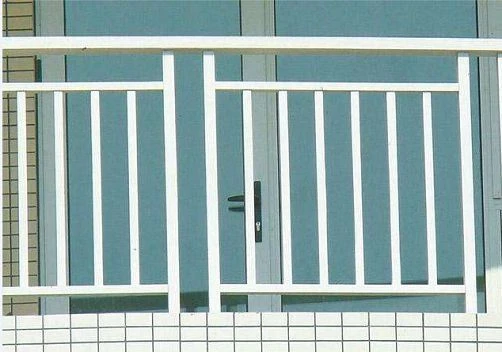

Door and window guardrail
the products can be widely used in the processing and welding of hardware, home appliances, furniture, kitchenware, battery, bathroom, glasses frame, lighting decoration, medical equipment, door and window guardrail, elevator and other industries, applicable to the welding of stainless steel, carbon steel and other materials.

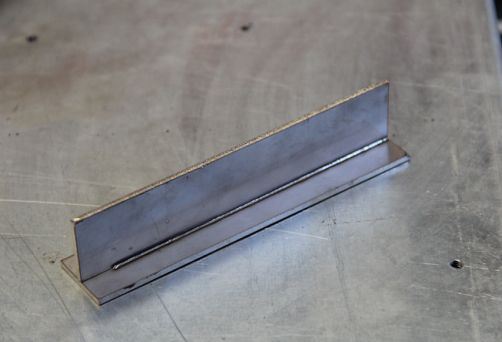

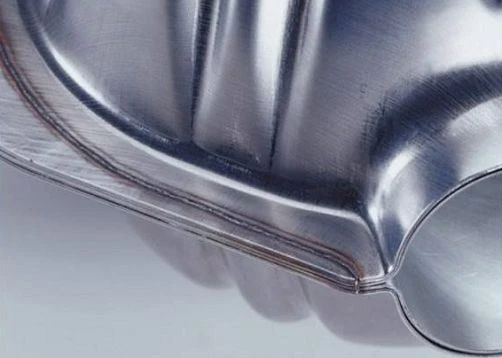

Welding samples: stainless steel welding, aluminum welding, carbon steel welding, and other welding parts stainless steel welding

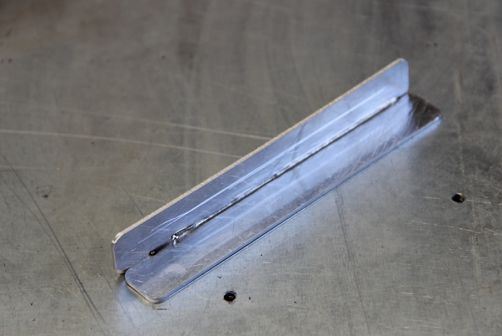

Aluminum Welding

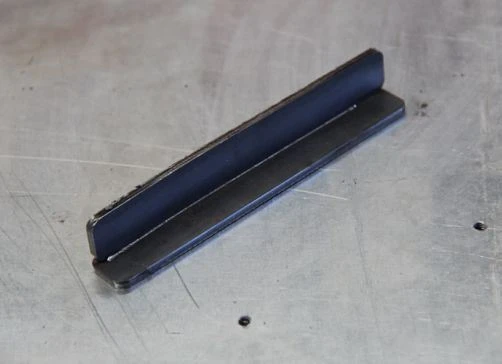

Carbon steel welding

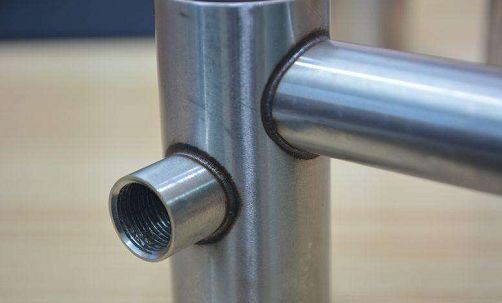

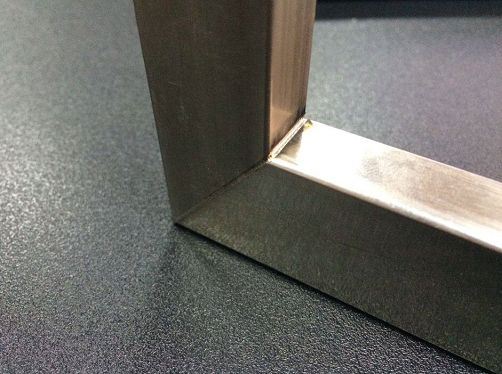

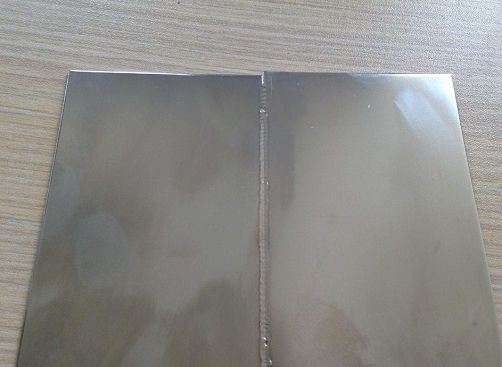

Other sample
