Thin Thickness Laser Cutter
Thin thickness laser cutter- LF series. LEAD Laser can provide LF series to cut thin material depends on laser power. It can realize fast cutting speed on 1mm metal sheet. Below 6mm carbon steel, can choose 1kw.
Product Introduction

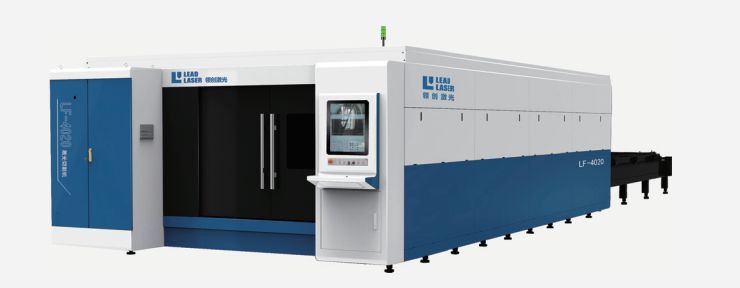

Thin Thickness Laser Cutter
Thin thickness laser cutter- LF series. LEAD Laser can provide LF series to cut thin material depends on laser power. It can realize fast cutting speed on 1mm metal sheet. Below 6mm carbon steel, can choose 1kw. Maximum 12mm carbon steel, can choose 2kw. Once having carbon steel over 16mm, must need 3kw. Available size is 3meter by 1.5meter, 4meter by 2 meters.
Main Parameter
Item | LF-3015 | LF-4020 | Unit |
Cutting Area | 3000*1500 | 4000*2000 | mm |
X axis stroke | 3050 | 4050 | mm |
Y axis stroke | 1550 | 2050 | mm |
Z axis stroke | 310 | 310 | mm |
X- and Y-axis positioning accuracy | ±0.03 | ±0.03 | mm/m |
X- and Y-axis repositioning accuracy | 0.02 | 0.02 | mm/m |
Maximum positioning speed | 64 | 64 | m/min |
Maximum acceleration | 1 | 1 | g |
Laser power | 1500-6000 | W | |
Main Feature

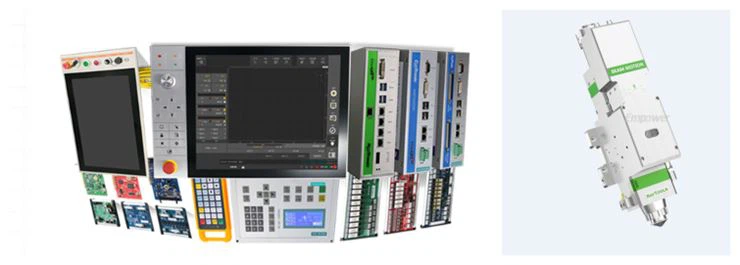

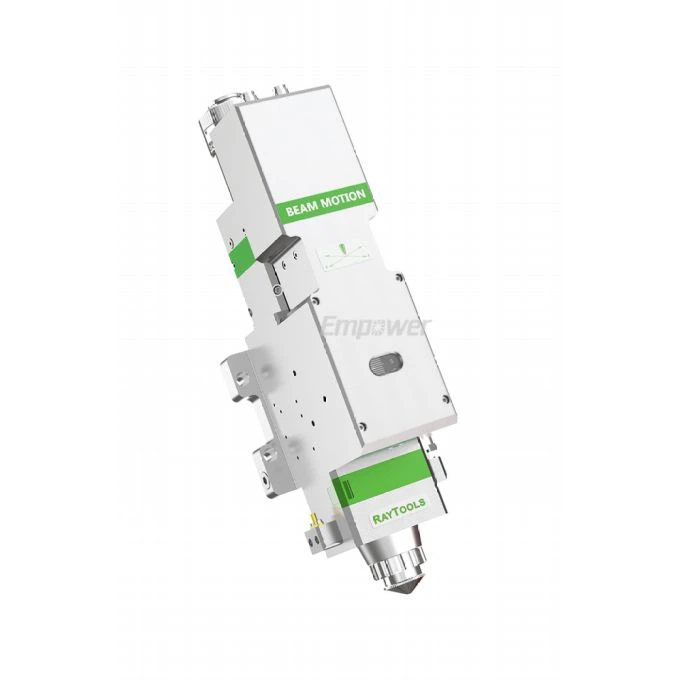

Adopts stable CNC system "Cypcut" and automatic cutting head "Raytools" by Swiss brand improve machine cutting performance.

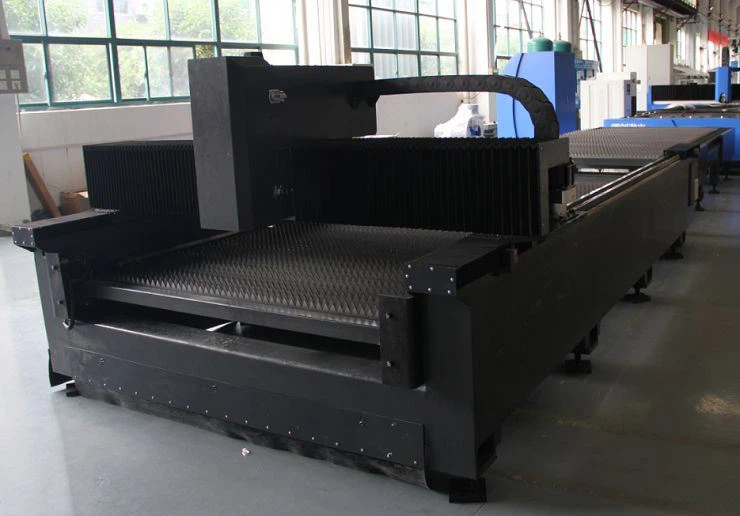

Machine Tool
High compressive-strength machine frame made by square pipe. It has advantage of high fixed structure and can keep cutting accuracy during very high cutting speed. Each machine inspected well before shipment meets customer requirement during several years running.

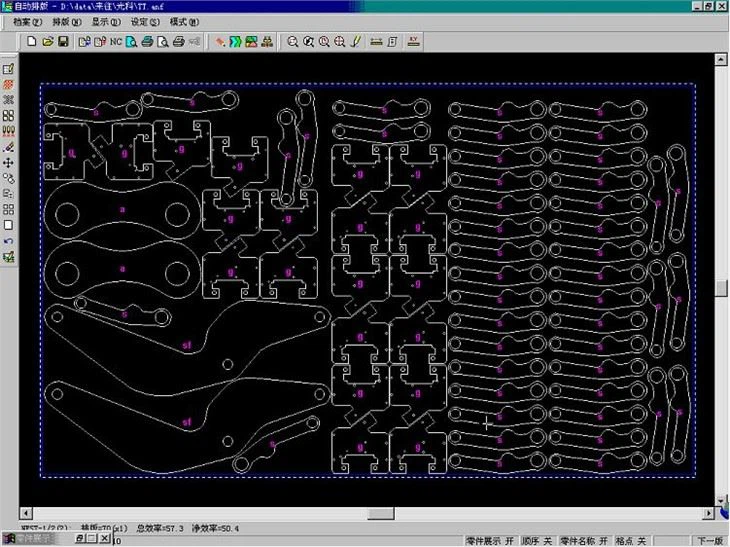

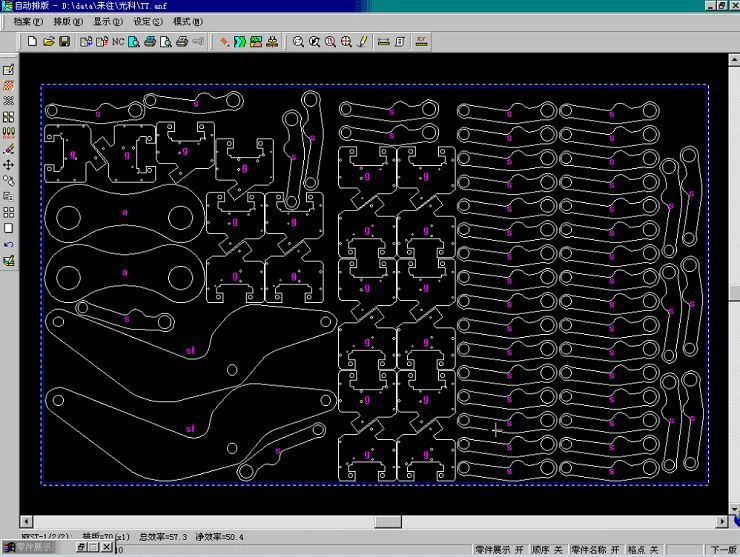

Cyp NEST programming software
Cyp NEST professional program software developed based on "Cypcut" system.Combining the features of laser cutting machine, it's more graphic so that operator can learn very easily. Also can support all kinds of program format, very fast conversion. Just edit in the machine to save time.
