2kw Laser Cutting Machine
2KW laser cutting machine has several choices, LEAD LASER can provide LS series in single table. If you need double table, we have LF series. But for high end machine, LZ series would be best choice.
Product Introduction
2kw Laser Cutting Machine

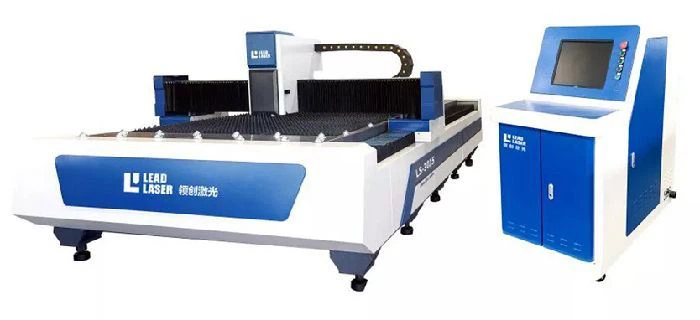

LS Series

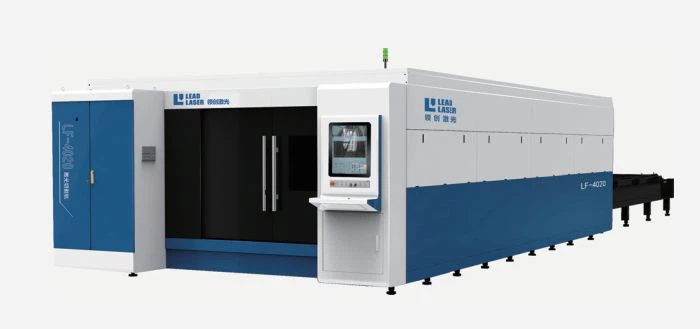

LF SERIES
2KW laser cutting machine has several choices, LEAD LASER can provide LS series in single table. If you need double table, we have LF series. But for high end machine, LZ series would be best choice. The standard table size can be 3015, 4020. 2KW laser source can deal with max.16mm carbon steel, 8mm stainless and aluminum. Which is widely used in Kitchen utensils and appliances industry, home decoration.

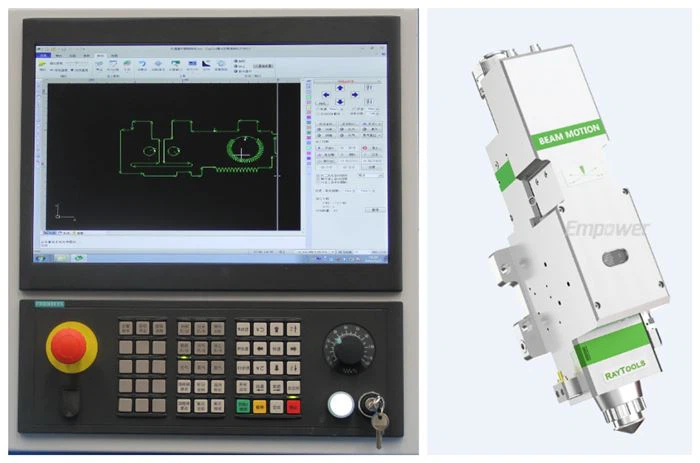

● Cyp cut CNC control with large program memory
● Pneumatic system made by SMC, ARK, Sang-A
● Servo motor made by Japan Brand
● The gear and rack made by LINDE/APEX
● Linear guide made by HIWIN/TBI
● Dust suction suit
● Automatic cutting head sensor with capacitance distance sensor
● Scrap boxes for scrap and dust removal from under the working area of the machine
● Seal protection for transmission system
● Central lubrication system
● Gas selection valve for different gas-assistance
● Build in nesting and programming software
● Auto-focus laser cutting head
● Fiber laser source
● Flying piercing function
● Frog-jumping function
● Automatic sheet edge sharing
Main Parameter
Item | LS series | LF series | Unit |
Working table | Single table | Double table | |
Cutting Area | 3000*1500,4000* 2000 | 3000*1500,4000* 2000 | mm |
Z axis stroke | 80 | 300 | mm |
X- and Y-axis positioning accuracy | ±0.03 | ±0.03 | mm/m |
Repositioning accuracy | 0.02 | 0.02 | mm/m |
Maximum positioning speed | 64 | 64 | m/min |
Maximum acceleration | 1 | 1 | g |
Laser power | 2000-4000 | w | |
